Infineon Technologies-ICE5AR0680BZSXKLA1 - PMIC - AC DC Converters, Offline Switchers Product Specifications and Latest Quotes

Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	800V
Topology:	Flyback
Voltage - Start Up:	16 V
Voltage - Supply (Vcc/Vdd):	10V ~ 25.5V
Duty Cycle:	75%
Frequency - Switching:	100kHz
Power (Watts):	39 W
Fault Protection:	Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage
Control Features:	EN, Soft Start, Sync
Operating Temperature:	-40°C ~ 125°C (TJ)
Package / Case:	8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package:	PG-DIP-7
Mounting Type:	Through Hole

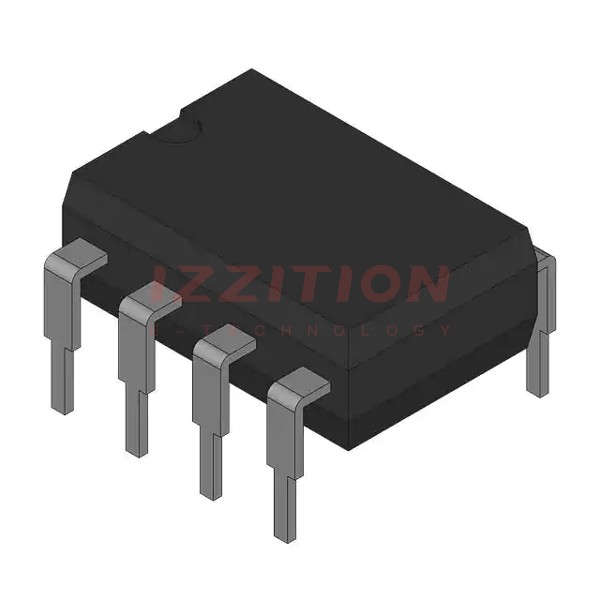

Infineon Technologies ICE5AR0680BZSXKLA1
