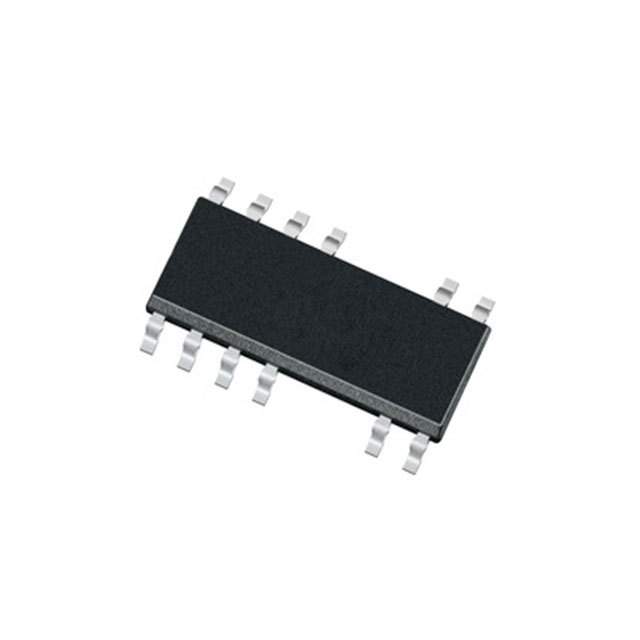

| Part Number | ICE5AR0680AGXUMA1 | ICE5QR0680AGXUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Not For New Designs |
| Output Isolation | Non-Isolated | Isolated |
| Internal Switch(s) | Yes | Yes |
| Voltage - Breakdown | 800V | 800V |
| Topology | Flyback | Flyback |
| Voltage - Start Up | - | 16 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 25.5V | 10V ~ 27V |
| Duty Cycle | 75% | - |
| Frequency - Switching | 100kHz | - |
| Power (Watts) | 40 W | 77 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features | EN, Soft Start, Sync | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 12 Leads | 16-SOIC (0.154", 3.90mm Width), 12 Leads |
| Supplier Device Package | PG-DSO-12-21 | PG-DSO-12-21 |
| Mounting Type | Surface Mount | Surface Mount |
