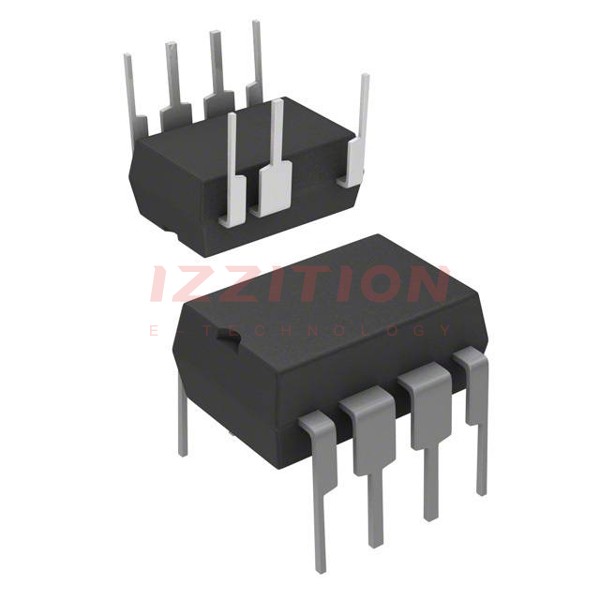

| Part Number | ICE3BR4765JZXKLA1 | ICE3RBR4765JZXKLA1 | ICE3BR1765JZXKLA1 | ICE3BR4765JXKLA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Active | Not For New Designs | Obsolete |
| Output Isolation | Isolated | Isolated | Isolated | Isolated |
| Internal Switch(s) | Yes | Yes | Yes | Yes |
| Voltage - Breakdown | 650V | 650V | 650V | 650V |
| Topology | Flyback | Flyback | Flyback | Flyback |
| Voltage - Start Up | 18 V | 18 V | 18 V | 18 V |
| Voltage - Supply (Vcc/Vdd) | 10.5V ~ 25V | 10.5V ~ 25V | 10.5V ~ 25V | 10.5V ~ 27V |
| Duty Cycle | 75% | 75% | 75% | 75% |
| Frequency - Switching | 65kHz | 65kHz | 65kHz | 65kHz |
| Power (Watts) | 26 W | 26 W | 44.5 W | 27 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - | - | - | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 130°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | PG-DIP-7 | PG-DIP-7-1 | PG-DIP-7-1 | PG-DIP-8 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
