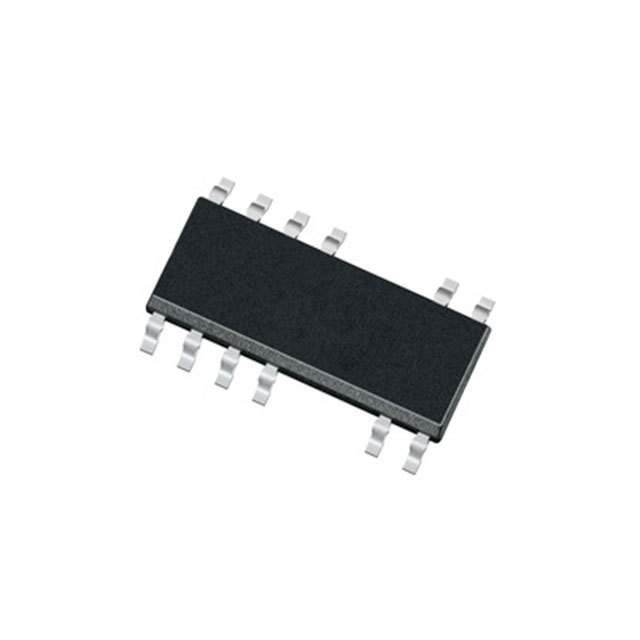

| Part Number | ICE3BR4765JGXUMA1 | ICE3RBR4765JGXUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Active |
| Output Isolation | Isolated | Isolated |
| Internal Switch(s) | Yes | Yes |
| Voltage - Breakdown | 650V | 650V |
| Topology | Flyback | Flyback |
| Voltage - Start Up | 18 V | 18 V |
| Voltage - Supply (Vcc/Vdd) | 10.5V ~ 27V | 10.5V ~ 25V |
| Duty Cycle | 75% | 75% |
| Frequency - Switching | 65kHz | 65kHz |
| Power (Watts) | 24 W | 24 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features | - | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 130°C (TJ) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 12 Leads | 16-SOIC (0.154", 3.90mm Width), 12 Leads |
| Supplier Device Package | PG-DSO-12-10 | PG-DSO-12-19 |
| Mounting Type | Surface Mount | Surface Mount |
