| Part Number | ICE3AR2280JZ1XKLA1 | ICE3AR2280JZXKLA1 | ICE3AR2280JZ2XKLA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Obsolete |
| Output Isolation | Isolated | Isolated | Isolated |
| Internal Switch(s) | Yes | Yes | Yes |
| Voltage - Breakdown | 800V | 800V | 800V |
| Topology | Flyback | Flyback | Flyback |
| Voltage - Start Up | 17 V | 17 V | 17 V |
| Voltage - Supply (Vcc/Vdd) | 10.5V ~ 25V | 10.5V ~ 27V | 10.5V ~ 25V |
| Duty Cycle | 75% | 75% | 75% |
| Frequency - Switching | 100kHz | 100kHz | 100kHz |
| Power (Watts) | 43 W | 43 W | 43 W |
| Fault Protection | Over Load, Over Temperature, Over Voltage | Over Load, Over Temperature, Over Voltage | Over Load, Over Temperature, Over Voltage |
| Control Features | - | - | EN, Soft Start |
| Operating Temperature | -25°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -25°C ~ 125°C (TJ) |

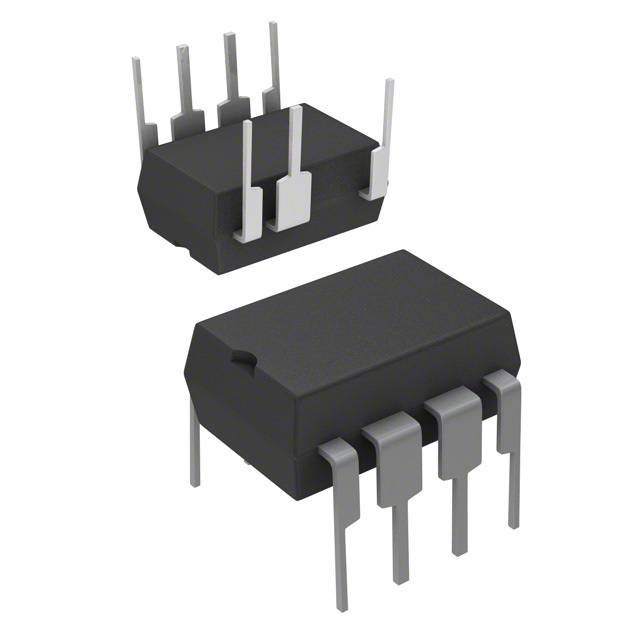

| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | PG-DIP-7-1 | PG-DIP-7-1 | PG-DIP-7 |
| Mounting Type | Through Hole | Through Hole | Through Hole |
