Infineon Technologies-IAUZ30N06S5L140ATMA1 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	30A (Tj)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	14mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 10µA
Gate Charge (Qg) (Max) @ Vgs:	12.2 nC @ 10 V
Vgs (Max):	±16V
Input Capacitance (Ciss) (Max) @ Vds:	888 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	33W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TSDSON-8-32
Package / Case:	8-PowerTDFN

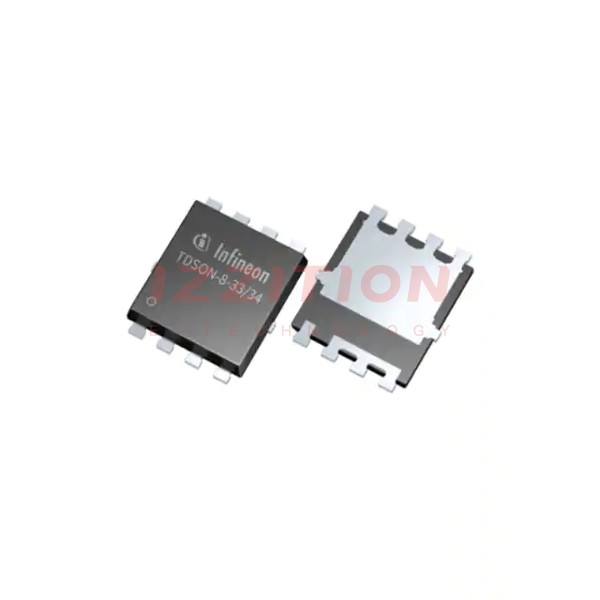

Infineon Technologies IAUZ30N06S5L140ATMA1
