Infineon Technologies-IAUS300N10S5N015TATMA1 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	300A (Tj)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	1.5mOhm @ 100A, 10V
Vgs(th) (Max) @ Id:	3.8V @ 275µA
Gate Charge (Qg) (Max) @ Vgs:	216 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	16011 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	375W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-HDSOP-16-2
Package / Case:	16-PowerSOP Module

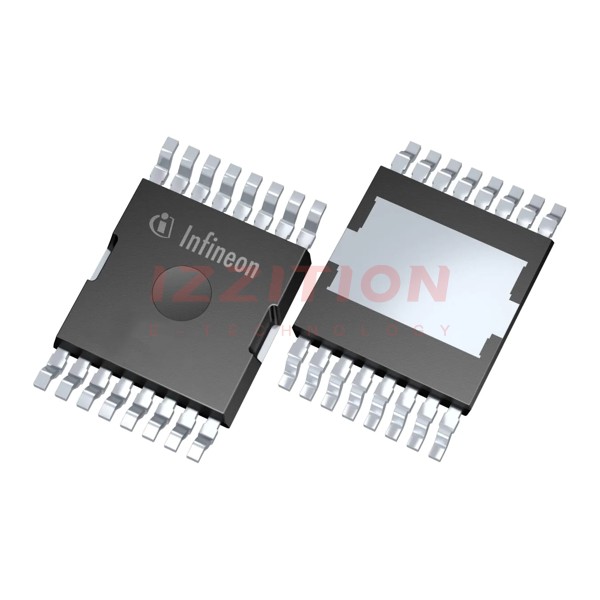

Infineon Technologies IAUS300N10S5N015TATMA1
