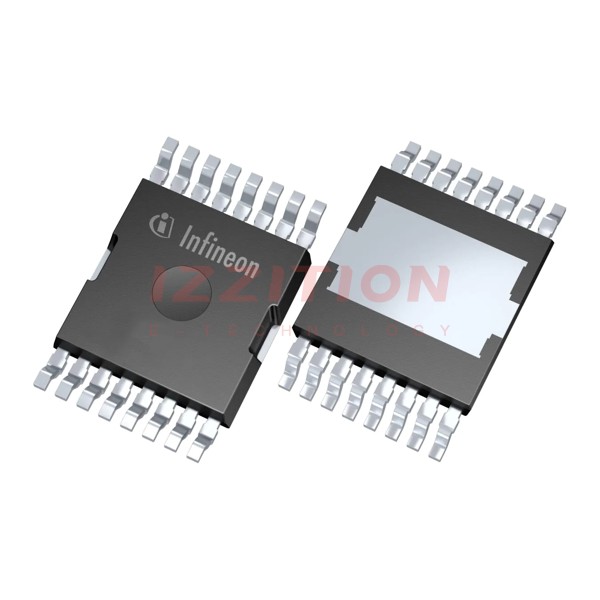

| Part Number | IAUS300N08S5N011TATMA1 | IAUS300N08S5N014TATMA1 | IAUS300N08S5N012TATMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V | 80 V | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 300A (Tj) | 300A (Tj) | 300A (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 1.1mOhm @ 100A, 10V | 1.4mOhm @ 100A, 10V | 1.2mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 275µA | 3.8V @ 230µA | 3.8V @ 275µA |
| Gate Charge (Qg) (Max) @ Vgs | 231 nC @ 10 V | 187 nC @ 10 V | 231 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 16250 pF @ 40 V | 13178 pF @ 40 V | 16250 pF @ 40 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 375W (Tc) | 300W (Tc) | 375W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-HDSOP-16-2 | PG-HDSOP-16-2 | PG-HDSOP-16-2 |
| Package / Case | 16-PowerSOP Module | 16-PowerSOP Module | 16-PowerSOP Module |
