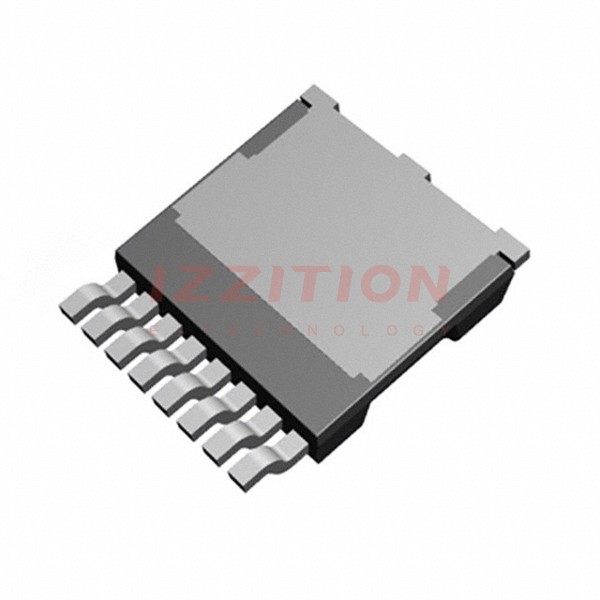

| Part Number | IAUS240N08S5N019ATMA1 | IAUT240N08S5N019ATMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 240A (Tc) | 240A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 1.9mOhm @ 100A, 10V | 1.9mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 160µA | 3.8V @ 160µA |
| Gate Charge (Qg) (Max) @ Vgs | 130 nC @ 10 V | 130 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9264 pF @ 40 V | 9264 pF @ 40 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 230W (Tc) | 230W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-HSOG-8-1 | PG-HSOF-8-1 |
| Package / Case | 8-PowerSMD, Gull Wing | 8-PowerSFN |
