Infineon Technologies-IAUS165N08S5N029ATMA1 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	80 V
Current - Continuous Drain (Id) @ 25°C:	165A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	2.9mOhm @ 80A, 10V
Vgs(th) (Max) @ Id:	3.8V @ 108µA
Gate Charge (Qg) (Max) @ Vgs:	90 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	6370 pF @ 40 V
FET Feature:	-
Power Dissipation (Max):	167W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-HSOG-8-1
Package / Case:	8-PowerSMD, Gull Wing

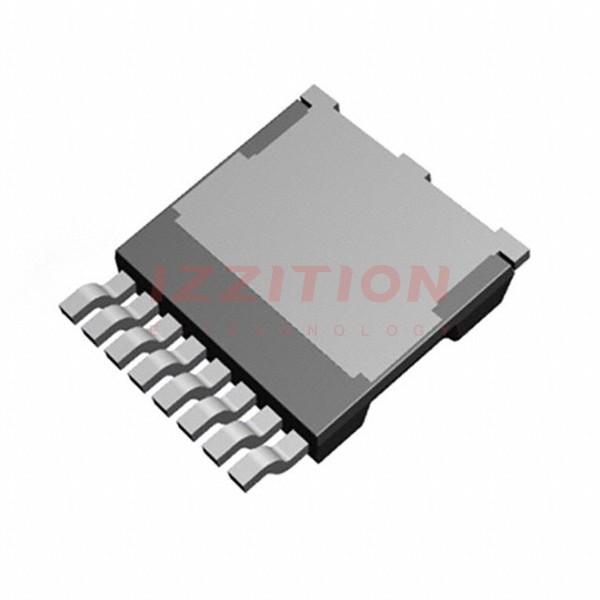

Infineon Technologies IAUS165N08S5N029ATMA1
