Infineon Technologies-IAUC120N06S5N017ATMA1 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	120A (Tj)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	1.7mOhm @ 60A, 10V
Vgs(th) (Max) @ Id:	3.4V @ 94µA
Gate Charge (Qg) (Max) @ Vgs:	95.9 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	6952 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	167W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TDSON-8-43
Package / Case:	8-PowerTDFN

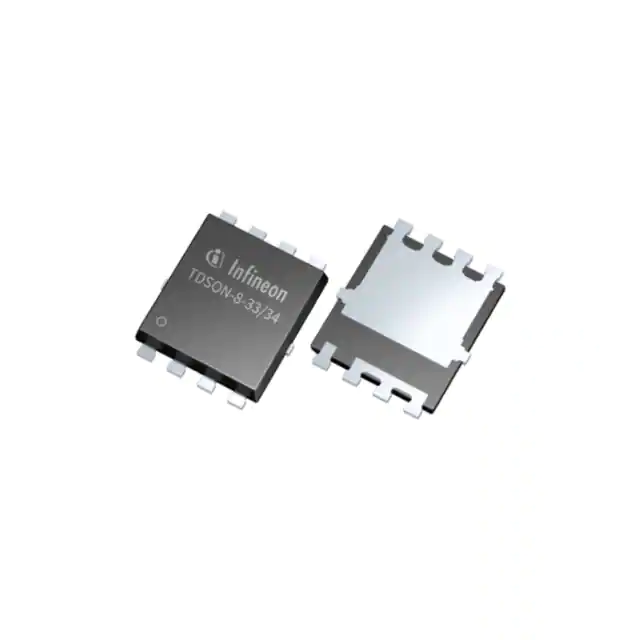

Infineon Technologies IAUC120N06S5N017ATMA1
