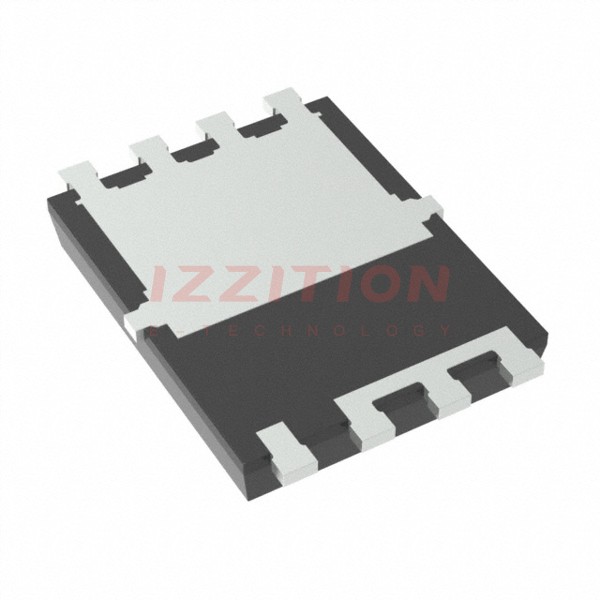

| Part Number | IAUC120N04S6L008ATMA1 | IAUC120N04S6L009ATMA1 | IAUC120N04S6L005ATMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) | 150A (Tc) | 120A (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 0.8mOhm @ 60A, 10V | 960mOhm @ 60A, 10V | 0.55mOhm @ 60A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 90µA | 2V @ 90µA | 2V @ 130µA |
| Gate Charge (Qg) (Max) @ Vgs | 140 nC @ 10 V | 128 nC @ 10 V | 177 nC @ 10 V |
| Vgs (Max) | ±16V | ±16V | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 7910 pF @ 25 V | 7806 pF @ 25 V | 11203 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 150W (Tc) | 150W (Tc) | 187W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-TDSON-8-33 | PG-TDSON-8-34 | PG-TDSON-8-53 |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
