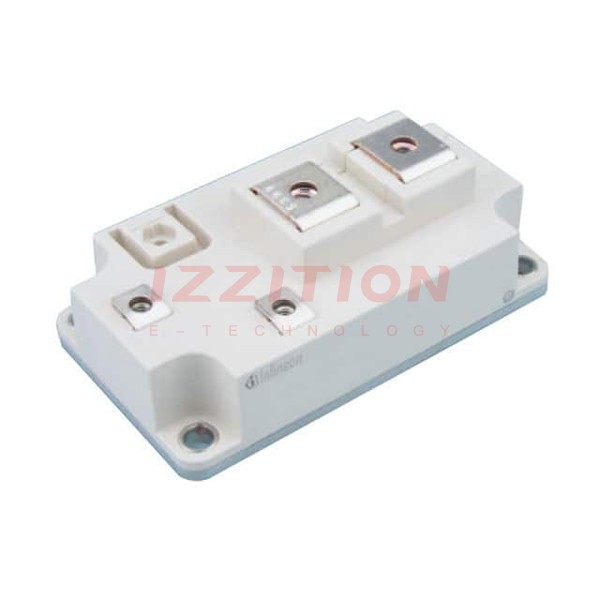

| Part Number | FZ800R33KF2CNOSA1 | FZ800R33KL2CNOSA1 | FZ800R33KF2CNOSA2 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Last Time Buy | Obsolete | Last Time Buy |
| IGBT Type | - | - | - |
| Configuration | Half Bridge | - | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 3300 V | 3300 V | 3300 V |
| Current - Collector (Ic) (Max) | 1300 A | 1500 A | 1 A |
| Power - Max | 9600 W | 9800 W | 9600 W |
| Vce(on) (Max) @ Vge, Ic | 4.25V @ 15V, 800A | 3.65V @ 15V, 800A | 4.25V @ 15V, 800A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 100 nF @ 25 V | 97 nF @ 25 V | 100 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | No | No | No |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C (TJ) | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | - |
