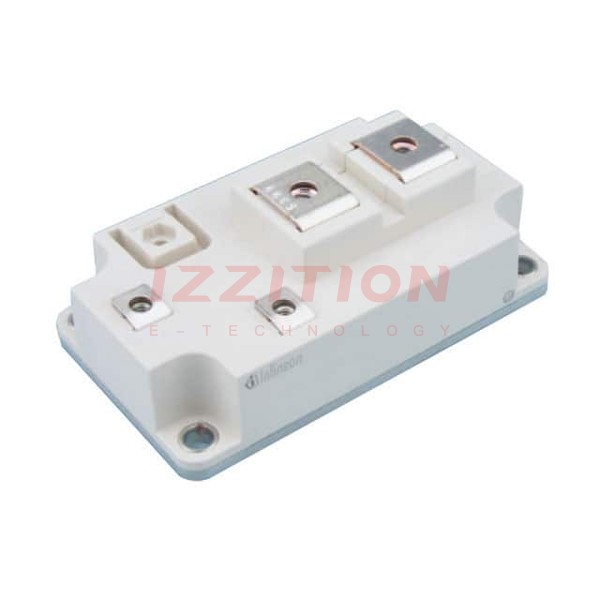

| Part Number | FZ800R12KE3HOSA1 | FZ400R12KE3HOSA1 | FZ600R12KE3HOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | - | Trench Field Stop |
| Configuration | Single | Single | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 800 A | 650 A | 900 A |
| Power - Max | 3550 W | 2250 W | 2800 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 800A | 2.15V @ 15V, 400A | 2.15V @ 15V, 600A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 56 nF @ 25 V | 28 nF @ 25 V | 42 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | No | No | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
