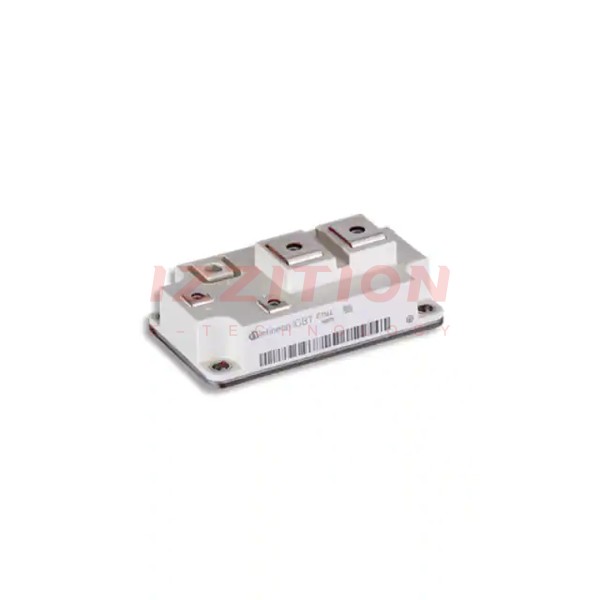

Infineon Technologies-FZ600R17KE3S4HOSA1 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Configuration:	Single
Voltage - Collector Emitter Breakdown (Max):	1700 V
Current - Collector (Ic) (Max):	1200 A
Power - Max:	3150 W
Vce(on) (Max) @ Vge, Ic:	2.45V @ 15V, 600A
Current - Collector Cutoff (Max):	3 mA
Input Capacitance (Cies) @ Vce:	54 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module

Infineon Technologies FZ600R17KE3S4HOSA1
