Infineon Technologies-FZ600R12KS4HOSA1 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

Part Number	FZ600R12KS4HOSA1	FZ400R12KS4HOSA1	FZ600R12KE4HOSA1	FZ600R12KP4HOSA1
Manufacturer	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies
Product Status	Active	Active	Active	Active
IGBT Type	-	-	-	Trench Field Stop
Configuration	Single	Single	Single	Single
Voltage - Collector Emitter Breakdown (Max)	1200 V	1200 V	1200 V	1200 V
Current - Collector (Ic) (Max)	700 A	510 A	600 A	600 A
Power - Max	3900 W	2500 W	3000 W	-
Vce(on) (Max) @ Vge, Ic	3.75V @ 15V, 600A	3.7V @ 15V, 400A	2.1V @ 15V, 600A	2.05V @ 15V, 600A
Current - Collector Cutoff (Max)	5 mA	5 mA	5 mA	5 mA
Input Capacitance (Cies) @ Vce	39 nF @ 25 V	26 nF @ 25 V	1.7 nF @ 25 V	42 nF @ 25 V
Input	Standard	Standard	Standard	Standard
NTC Thermistor	No	No	No	No
Operating Temperature	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 150°C
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Package / Case	Module	Module	Module	Module
Supplier Device Package	Module	Module	Module	Module

IGBT Type:	-
Configuration:	Single
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	700 A
Power - Max:	3900 W
Vce(on) (Max) @ Vge, Ic:	3.75V @ 15V, 600A
Current - Collector Cutoff (Max):	5 mA
Input Capacitance (Cies) @ Vce:	39 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module

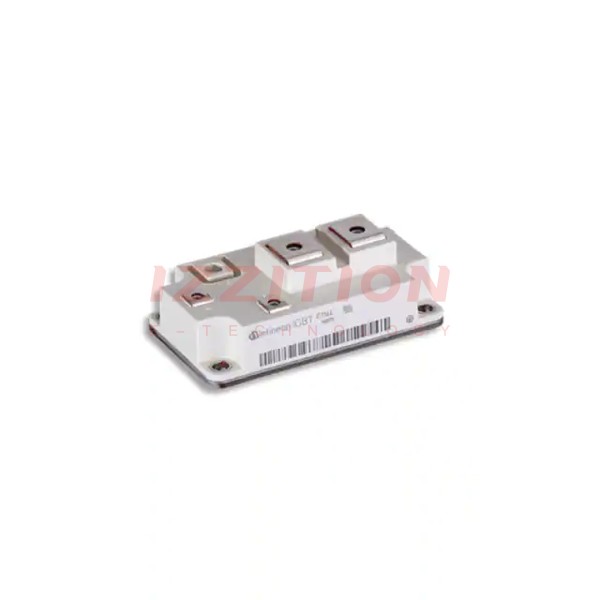

Infineon Technologies FZ600R12KS4HOSA1
