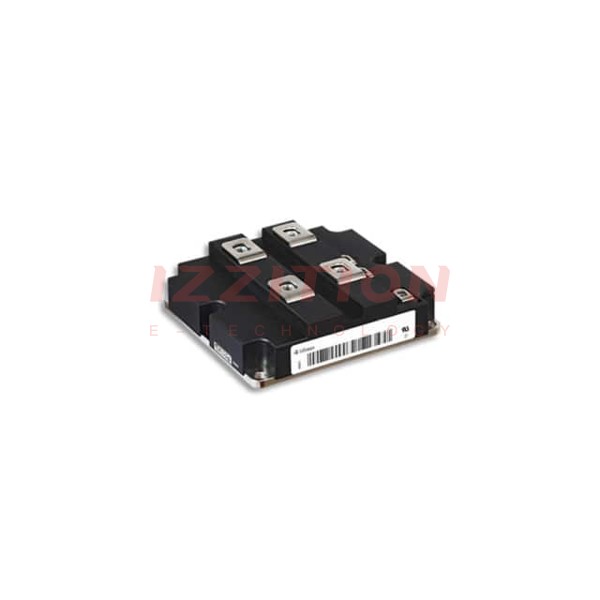

| Part Number | FZ500R65KE3NOSA1 | FZ600R65KE3NOSA1 | FZ400R65KE3NOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | - | - | - |
| Configuration | Half Bridge | Single | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 6500 V | 6500 V | 6500 V |
| Current - Collector (Ic) (Max) | 500 A | 600 A | 800 A |
| Power - Max | 2000000 W | 2400 W | 8350 W |
| Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 500A | 3.4V @ 15V, 600A | 3.4V @ 15V, 400A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 135 nF @ 25 V | 160 nF @ 25 V | 110 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | No | No | No |
| Operating Temperature | -50°C ~ 125°C | -50°C ~ 125°C | -50°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
