Infineon Technologies-FZ400R12KS4HOSA1 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

Part Number	FZ400R12KS4HOSA1	FZ600R12KS4HOSA1	FZ400R12KS4PHOSA1	FZ400R12KE4HOSA1	FZ400R12KP4HOSA1
Manufacturer	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies
Product Status	Active	Active	Active	Active	Active
IGBT Type	-	-	-	Trench Field Stop	Trench Field Stop
Configuration	Single	Single	Single	Single	Single
Voltage - Collector Emitter Breakdown (Max)	1200 V	1200 V	1200 V	1200 V	1200 V
Current - Collector (Ic) (Max)	510 A	700 A	800 A	400 A	400 A
Power - Max	2500 W	3900 W	-	2400 W	2400 W
Vce(on) (Max) @ Vge, Ic	3.7V @ 15V, 400A	3.75V @ 15V, 600A	3.7V @ 15V, 400A	2.1V @ 15V, 400A	2.05V @ 15V, 400A
Current - Collector Cutoff (Max)	5 mA	5 mA	5 mA	5 mA	5 mA
Input Capacitance (Cies) @ Vce	26 nF @ 25 V	39 nF @ 25 V	26 nF @ 25 V	28 nF @ 25 V	28 nF @ 25 V
Input	Standard	Standard	Standard	Standard	Standard
NTC Thermistor	No	No	No	Yes	No
Operating Temperature	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 150°C (TJ)	-40°C ~ 125°C
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Package / Case	Module	Module	Module	Module	Module
Supplier Device Package	Module	Module	Module	Module	Module

IGBT Type:	-
Configuration:	Single
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	510 A
Power - Max:	2500 W
Vce(on) (Max) @ Vge, Ic:	3.7V @ 15V, 400A
Current - Collector Cutoff (Max):	5 mA
Input Capacitance (Cies) @ Vce:	26 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module

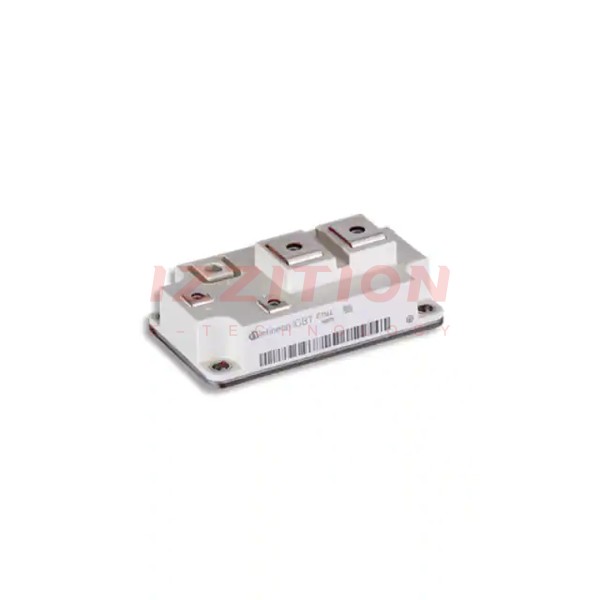

Infineon Technologies FZ400R12KS4HOSA1
