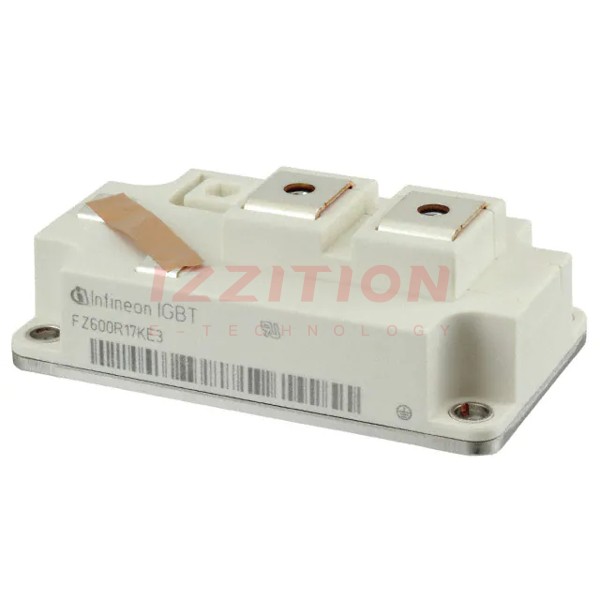

| Part Number | FZ400R12KE4HOSA1 | FZ600R12KE4HOSA1 | FZ400R17KE4HOSA1 | FZ400R12KS4HOSA1 | FZ900R12KE4HOSA1 | FZ400R12KP4HOSA1 | FZ400R12KE3HOSA1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| IGBT Type | Trench Field Stop | - | Trench Field Stop | - | Trench Field Stop | Trench Field Stop | - |
| Configuration | Single | Single | Single | Single | Single | Single | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1700 V | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 400 A | 600 A | 550 A | 510 A | 900 A | 400 A | 650 A |
| Power - Max | 2400 W | 3000 W | 2500 W | 2500 W | 4300 W | 2400 W | 2250 W |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 400A | 2.1V @ 15V, 600A | 2.3V @ 15V, 400A | 3.7V @ 15V, 400A | 2.1V @ 15V, 900A | 2.05V @ 15V, 400A | 2.15V @ 15V, 400A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 1 mA | 5 mA | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 28 nF @ 25 V | 1.7 nF @ 25 V | 49 nF @ 25 V | 26 nF @ 25 V | 56 nF @ 25 V | 28 nF @ 25 V | 28 nF @ 25 V |
| Input | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| NTC Thermistor | Yes | No | No | No | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 125°C | -40°C ~ 150°C (TJ) | -40°C ~ 125°C | -40°C ~ 150°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module | Module | Module | Module |
| Supplier Device Package | Module | Module | Module | Module | Module | Module | Module |
