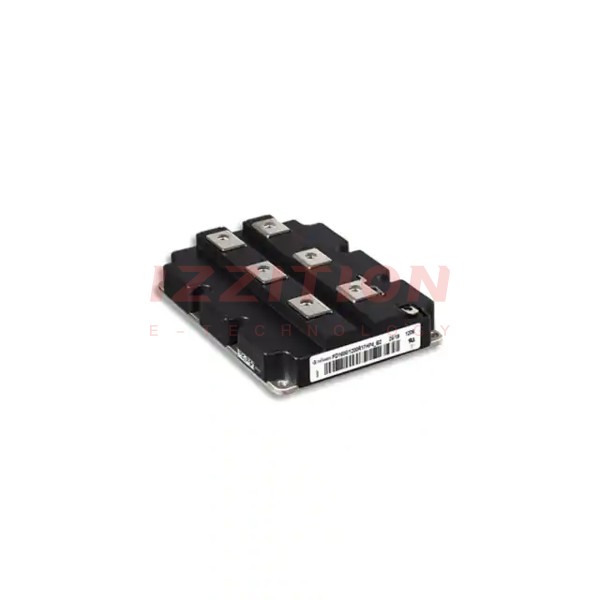

| Part Number | FZ2400R12HP4B9HOSA2 | FZ2400R12HE4B9HOSA2 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | Trench | Trench Field Stop |
| Configuration | Single Switch | Single Switch |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 3550 A | 3560 A |
| Power - Max | 13500 W | 13500 W |
| Vce(on) (Max) @ Vge, Ic | 2.05V @ 15V, 2400A | 2.1V @ 15V, 2400A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 150 nF @ 25 V | 150 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | No | No |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
| Supplier Device Package | Module | Module |
