Infineon Technologies-FZ1800R45HL4BPSA1 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Configuration:	3 Independent
Voltage - Collector Emitter Breakdown (Max):	4500 V
Current - Collector (Ic) (Max):	1.8 kA
Power - Max:	4000 W
Vce(on) (Max) @ Vge, Ic:	2.8V @ 15V, 1.8kA
Current - Collector Cutoff (Max):	5 mA
Input Capacitance (Cies) @ Vce:	297 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	AG-IHVB190

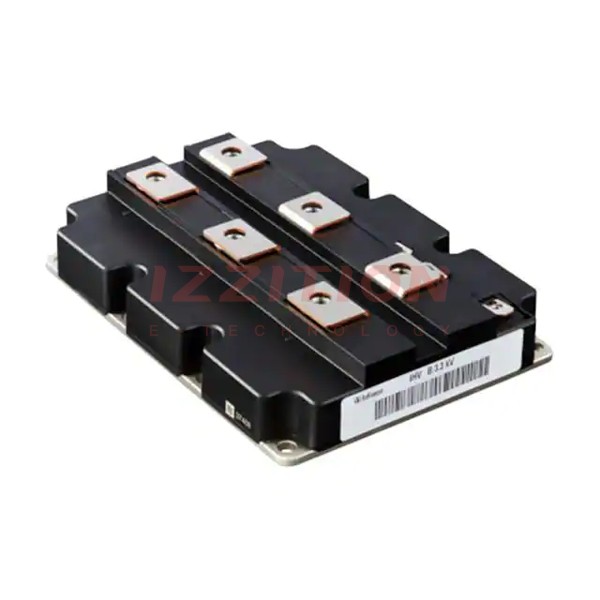

Infineon Technologies FZ1800R45HL4BPSA1
