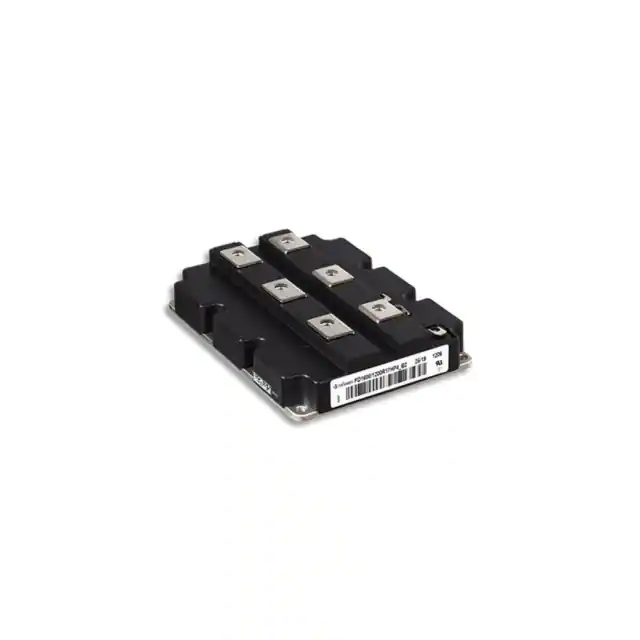

| Part Number | FZ1800R12HE4B9HOSA2 | FZ1800R12HP4B9HOSA2 | FZ1800R17HE4B9HOSA2 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench | - |
| Configuration | Single Switch | Single Switch | Single Switch |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1700 V |
| Current - Collector (Ic) (Max) | 2735 A | 2700 A | 1800 A |
| Power - Max | 11000 W | 10500 W | 11500 W |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 1800A | 2.05V @ 15V, 1800A | 2.3V @ 15V, 1800A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 110 nF @ 25 V | 110 nF @ 25 V | 145 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | No | No | No |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
