Please send RFQ , we will respond immediately.

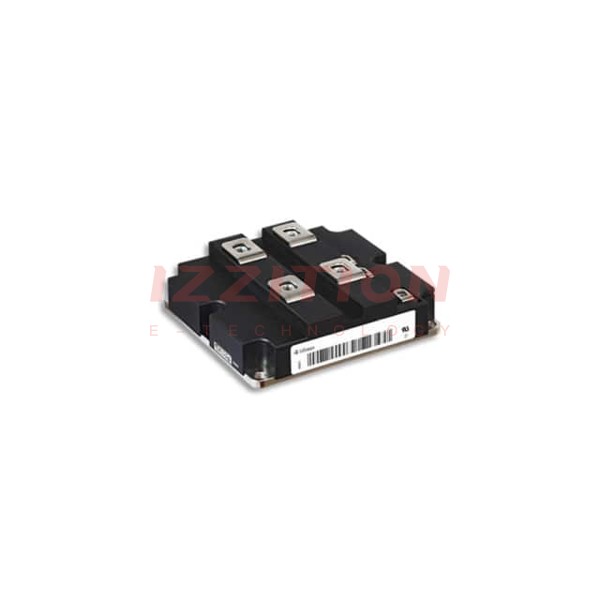

| Part Number | FZ1600R17HP4B21BOSA2 | FZ1600R17HP4B2BOSA2 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Configuration | Half Bridge | Single Switch |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V | 1700 V |
| Current - Collector (Ic) (Max) | 1600 A | 1600 A |
| Power - Max | 10500 W | 10500 W |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 1600A | 2.25V @ 15V, 1.6kA |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 130 nF @ 25 V | 130 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | No | No |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
| Supplier Device Package | Module | A-IHV130-3 |
