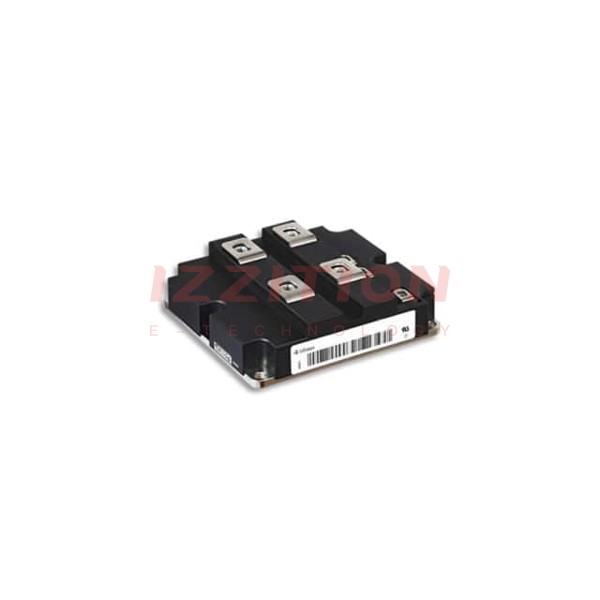

| Part Number | FZ1400R33HE4BPSA1 | FZ2400R33HE4BPSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Configuration | 2 Independent | Single Switch |
| Voltage - Collector Emitter Breakdown (Max) | 3300 V | 3300 V |
| Current - Collector (Ic) (Max) | 1400 A | 2400 A |
| Power - Max | - | 5.4 MW |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 1400A (Typ) | 2.65V @ 15V, 2.4kA |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 187 nF @ 25 V | 280 nF @ 25 V |
| Input | Single Phase Bridge Rectifier | Standard |
| NTC Thermistor | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
| Supplier Device Package | Module | AG-IHVB190-3 |
