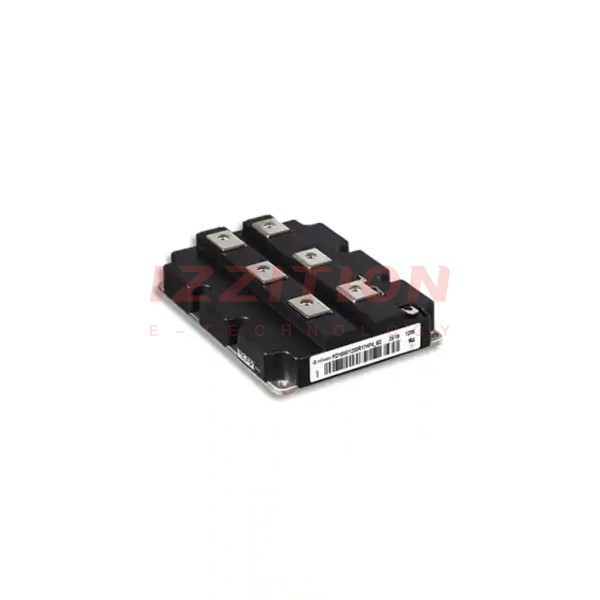

| Part Number | FZ1200R33HE3BPSA1 | FZ1500R33HE3BPSA1 | FZ1000R33HE3BPSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Full Bridge | Full Bridge | Single Switch |
| Voltage - Collector Emitter Breakdown (Max) | 3300 V | 3300 V | 3300 V |
| Current - Collector (Ic) (Max) | 1200 A | 1500 A | 1000 A |
| Power - Max | 13000 W | 17000 W | - |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 1200A | 3.1V @ 15V, 1500A | 3.1V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 210 nF @ 25 V | 280 nF @ 25 V | 190 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | No | No | No |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
