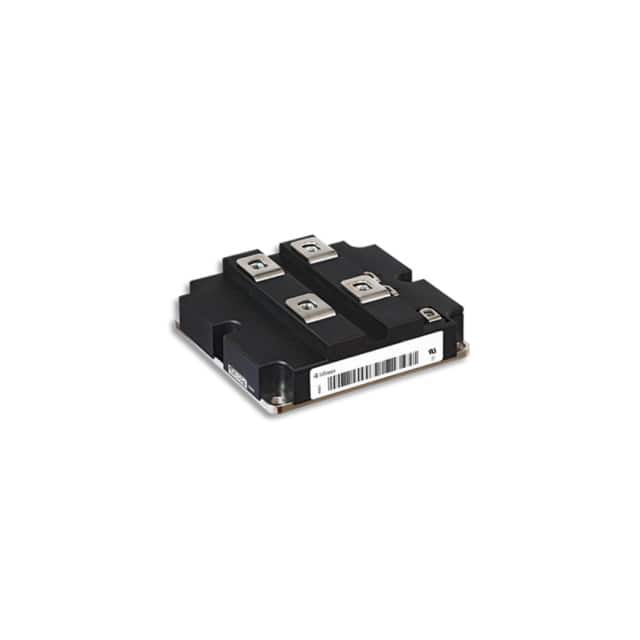

| Part Number | FZ1200R17HP4HOSA2 | FZ1200R12HP4HOSA2 | FZ1200R17HE4HOSA2 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench | Trench | - |
| Configuration | Single Switch | Single Switch | Single Switch |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V | 1200 V | 1700 V |
| Current - Collector (Ic) (Max) | 1200 A | 1790 A | 1200 A |
| Power - Max | 7800 W | 7150 W | 7800 W |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 1200A | 2.05V @ 15V, 1200A | 2.3V @ 15V, 1200A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 97 nF @ 25 V | 74 nF @ 25 V | 97 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | No | No | No |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
