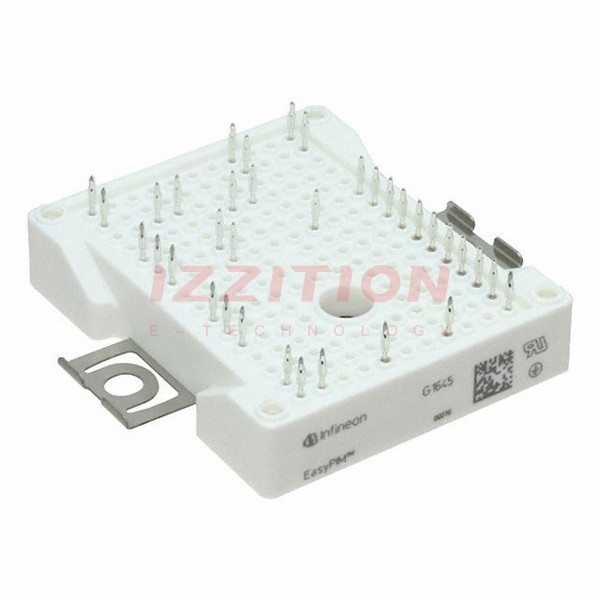

| Part Number | FS75R12W2T4B11BOMA1 | FS75R12W2T7B11BOMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Configuration | Full Bridge | Full Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 107 A | 65 A |
| Power - Max | 375 W | 20 mW |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 75A | 1.55V @ 15V, 75A (Typ) |
| Current - Collector Cutoff (Max) | 1 mA | 13 µA |
| Input Capacitance (Cies) @ Vce | 4.3 nF @ 25 V | 15.1 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | Yes | No |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 175°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
| Supplier Device Package | Module | Module |
