Please send RFQ , we will respond immediately.

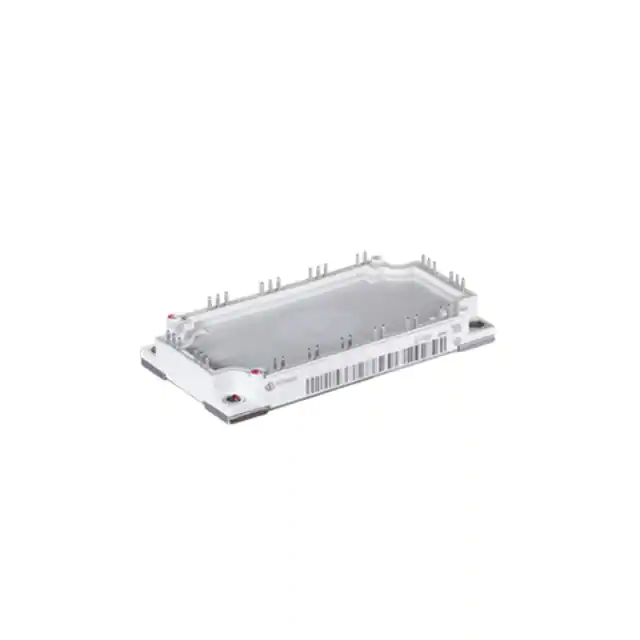

| Part Number | FS75R12KE3GBOSA1 | FS75R12KT3GBOSA1 | FS75R12KE3BOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Discontinued at Digi-Key |
| IGBT Type | - | Trench Field Stop | NPT |
| Configuration | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 100 A | 100 A | 105 A |
| Power - Max | 355 W | 355 W | 350 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 75A | 2.15V @ 15V, 75A | 2.15V @ 15V, 75A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 5.3 nF @ 25 V | 5.3 nF @ 25 V | 5.3 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
