Please send RFQ , we will respond immediately.

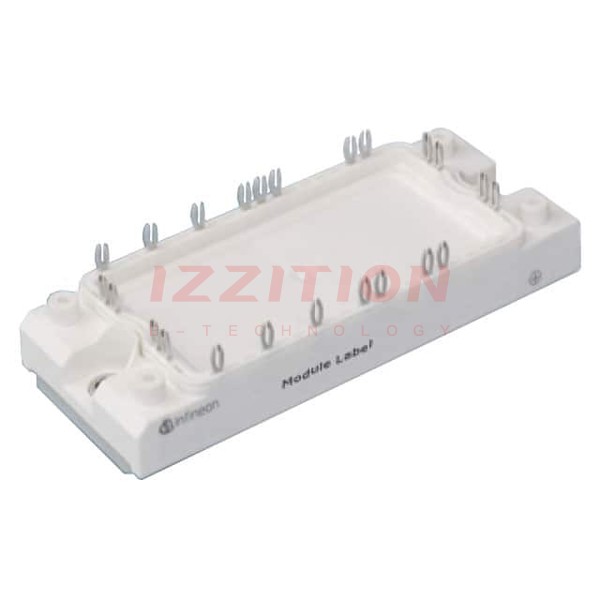

| Part Number | FS50R06W1E3B11BOMA1 | FS20R06W1E3B11BOMA1 | FS30R06W1E3B11BOMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Three Phase Inverter | Full Bridge | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 70 A | 35 A | 45 A |
| Power - Max | 205 W | 135 W | 150 W |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 50A | 2V @ 15V, 20A | 2V @ 15V, 30A |
| Current - Collector Cutoff (Max) | 1 mA | 1 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | 3.1 nF @ 25 V | 1.1 nF @ 25 V | 1.65 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
