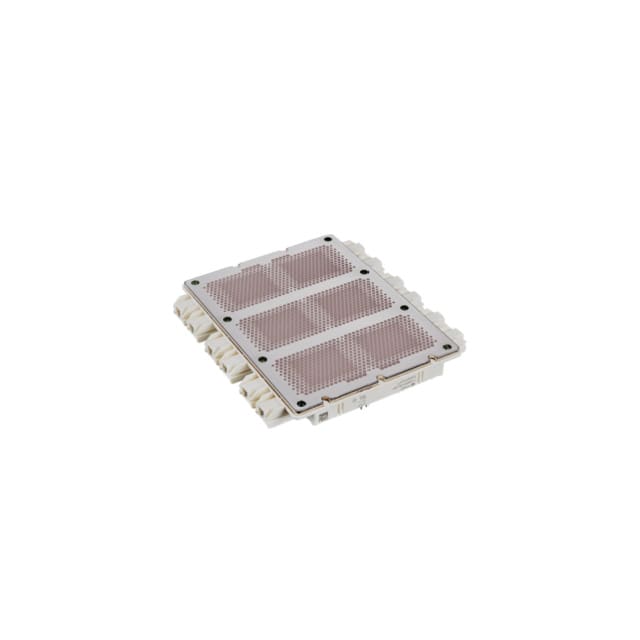

| Part Number | FS500R17OE4DPBOSA1 | FS500R17OE4DBOSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Configuration | Full Bridge | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V | 1700 V |
| Current - Collector (Ic) (Max) | 1000 A | 740 A |
| Power - Max | 20 mW | 3000 W |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 500A | 2.3V @ 15V, 500A |
| Current - Collector Cutoff (Max) | 3 mA | 3 mA |
| Input Capacitance (Cies) @ Vce | 40 nF @ 25 V | 40 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
| Supplier Device Package | Module | Module |
