Infineon Technologies-FS450R17OE4BOSA1 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

Part Number	FS450R17OE4BOSA1	FS450R17OE4PBOSA1	FS450R12OE4BOSA1	FS450R17KE4BOSA1
Manufacturer	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies
Product Status	Active	Active	Active	Not For New Designs
IGBT Type	Trench Field Stop	Trench Field Stop	Trench Field Stop	Trench Field Stop
Configuration	Full Bridge	Full Bridge	Three Phase Inverter	Full Bridge
Voltage - Collector Emitter Breakdown (Max)	1700 V	1700 V	1200 V	1700 V
Current - Collector (Ic) (Max)	630 A	900 A	660 A	600 A
Power - Max	2400 W	20 mW	2250 W	2500 W
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 450A	2.3V @ 15V, 450A	2.1V @ 15V, 450A	2.3V @ 15V, 450A
Current - Collector Cutoff (Max)	3 mA	3 mA	3 mA	3 mA
Input Capacitance (Cies) @ Vce	36 nF @ 25 V	36 nF @ 25 V	28 nF @ 25 V	36 nF @ 25 V
Input	Standard	Standard	Standard	Standard
NTC Thermistor	Yes	Yes	Yes	Yes
Operating Temperature	-40°C ~ 150°C	-40°C ~ 150°C	-40°C ~ 150°C (TJ)	-40°C ~ 150°C
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Package / Case	Module	Module	Module	Module
Supplier Device Package	Module	Module	Module	Module

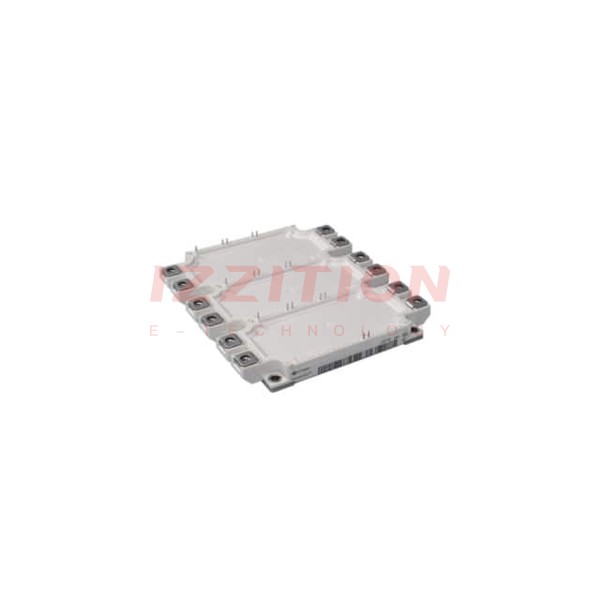

Infineon Technologies FS450R17OE4BOSA1

IGBT Type:	Trench Field Stop
Configuration:	Full Bridge
Voltage - Collector Emitter Breakdown (Max):	1700 V
Current - Collector (Ic) (Max):	630 A
Power - Max:	2400 W
Vce(on) (Max) @ Vge, Ic:	2.3V @ 15V, 450A
Current - Collector Cutoff (Max):	3 mA
Input Capacitance (Cies) @ Vce:	36 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module
