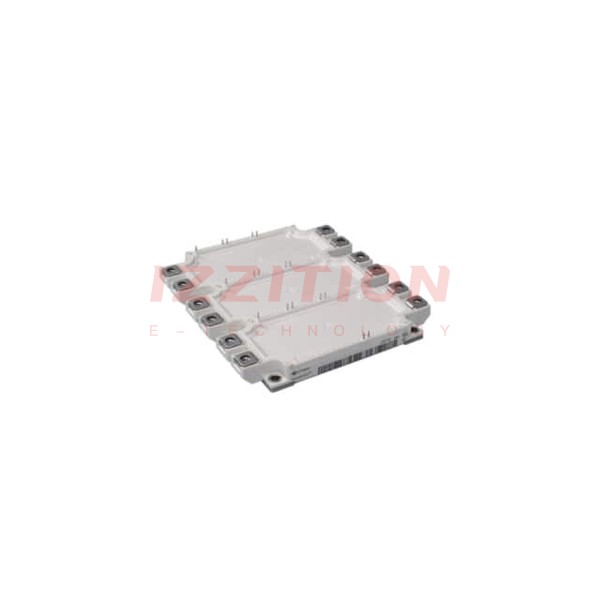

| Part Number | FS450R17KE4BOSA1 | FS450R17OE4BOSA1 | FS450R17KE3BOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Active | Not For New Designs |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Full Bridge | Full Bridge | Full Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V | 1700 V | 1700 V |
| Current - Collector (Ic) (Max) | 600 A | 630 A | 605 A |
| Power - Max | 2500 W | 2400 W | 2250 W |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 450A | 2.3V @ 15V, 450A | 2.45V @ 15V, 450A |
| Current - Collector Cutoff (Max) | 3 mA | 3 mA | 3 mA |
| Input Capacitance (Cies) @ Vce | 36 nF @ 25 V | 36 nF @ 25 V | 40.5 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
