Infineon Technologies-FS300R17KE4BOSA1 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

Part Number	FS300R17KE4BOSA1	FS300R17OE4BOSA1	FS300R12KE4BOSA1	FS300R17KE3BOSA1
Manufacturer	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies
Product Status	Not For New Designs	Active	Not For New Designs	Not For New Designs
IGBT Type	Trench Field Stop	Trench Field Stop	Trench Field Stop	Trench Field Stop
Configuration	Three Phase Inverter	Full Bridge	Three Phase Inverter	Full Bridge
Voltage - Collector Emitter Breakdown (Max)	1700 V	1700 V	1200 V	1700 V
Current - Collector (Ic) (Max)	375 A	450 A	450 A	375 A
Power - Max	1800 W	1850 W	1600 W	1650 W
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 300A	2.3V @ 15V, 300A	2.1V @ 15V, 300A	2.45V @ 15V, 300A
Current - Collector Cutoff (Max)	3 mA	3 mA	3 mA	3 mA
Input Capacitance (Cies) @ Vce	24.5 nF @ 25 V	24.5 nF @ 25 V	18.5 nF @ 25 V	27 nF @ 25 V
Input	Standard	Standard	Standard	Standard
NTC Thermistor	Yes	Yes	Yes	Yes
Operating Temperature	-40°C ~ 150°C	-40°C ~ 150°C	-40°C ~ 150°C	-40°C ~ 125°C
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Package / Case	Module	Module	Module	Module
Supplier Device Package	Module	Module	Module	Module

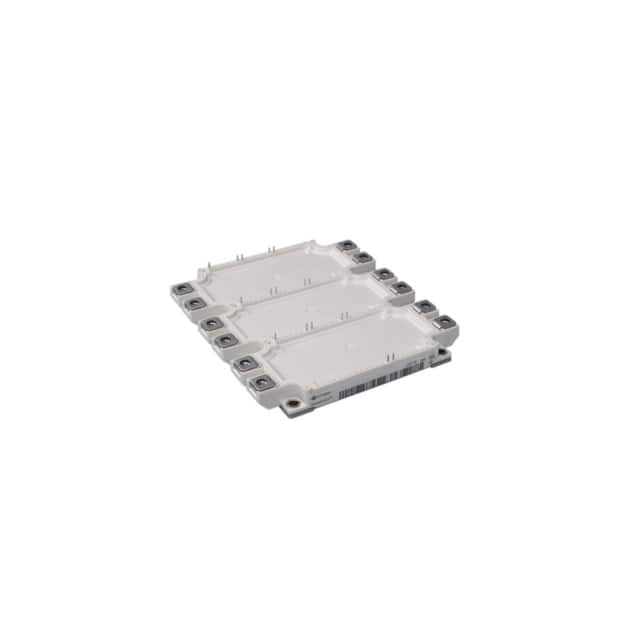

Infineon Technologies FS300R17KE4BOSA1

IGBT Type:	Trench Field Stop
Configuration:	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max):	1700 V
Current - Collector (Ic) (Max):	375 A
Power - Max:	1800 W
Vce(on) (Max) @ Vge, Ic:	2.3V @ 15V, 300A
Current - Collector Cutoff (Max):	3 mA
Input Capacitance (Cies) @ Vce:	24.5 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module
