Please send RFQ , we will respond immediately.

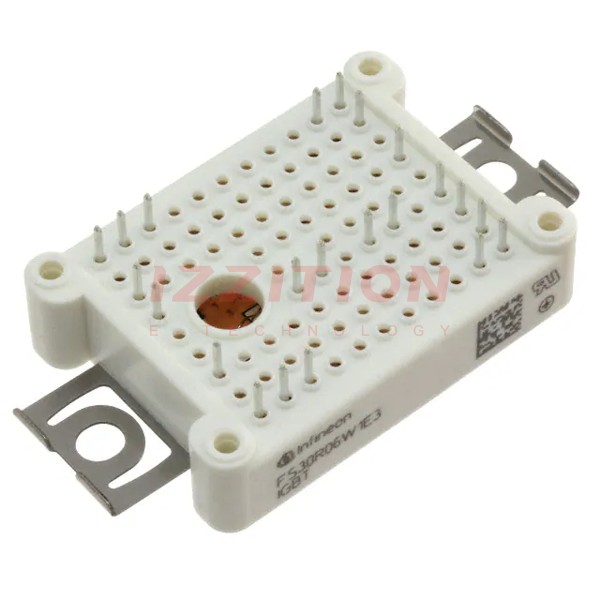

| Part Number | FS25R12W1T4BOMA1 | FS25R12W1T7BOMA1 | FS35R12W1T4BOMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 45 A | 25 A | 65 A |
| Power - Max | 205 W | 20 mW | 225 W |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 25A | - | 2.25V @ 15V, 35A |
| Current - Collector Cutoff (Max) | 1 mA | 5.6 µA | 1 mA |
| Input Capacitance (Cies) @ Vce | 1.45 nF @ 25 V | 4.77 nF @ 25 V | 2 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 175°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | AG-EASY1B | Module |
