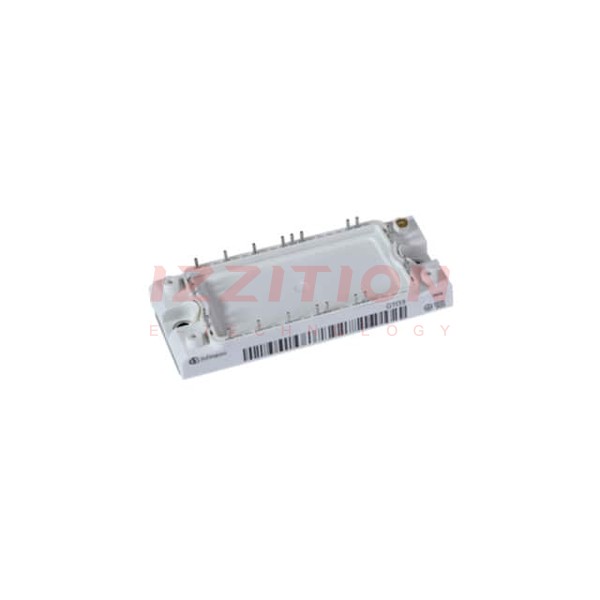

| Part Number | FS25R12KT3BOSA1 | FS75R12KT3BOSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Configuration | Full Bridge | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 40 A | 105 A |
| Power - Max | 145 W | 355 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 25A | 2.15V @ 15V, 75A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 1.8 nF @ 25 V | 5.3 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
| Supplier Device Package | Module | Module |
