Please send RFQ , we will respond immediately.

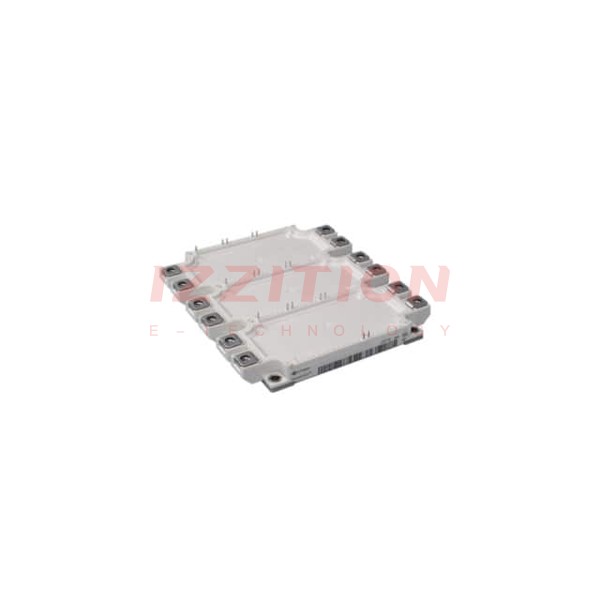

| Part Number | FS225R17OE4BOSA1 | FS225R17OE4PBOSA1 | FS225R12OE4BOSA1 | FS225R17KE4BOSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Not For New Designs |
| IGBT Type | Trench Field Stop | - | Trench Field Stop | Trench Field Stop |
| Configuration | Three Phase Inverter | - | Full Bridge Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V | - | 1200 V | 1700 V |
| Current - Collector (Ic) (Max) | 350 A | - | 350 A | 340 A |
| Power - Max | 1450 W | - | 1250 W | 1500 W |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 225A | - | 2.15V @ 15V, 225A | 2.3V @ 15V, 225A |
| Current - Collector Cutoff (Max) | 3 mA | - | 3 mA | 3 mA |
| Input Capacitance (Cies) @ Vce | 600 pF @ 25 V | - | 13 nF @ 25 V | 18.5 nF @ 25 V |
| Input | Standard | - | Standard | Standard |
| NTC Thermistor | Yes | - | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C | - | -40°C ~ 125°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | - | Chassis Mount | Chassis Mount |
| Package / Case | Module | - | Module | Module |
| Supplier Device Package | Module | - | Module | Module |
