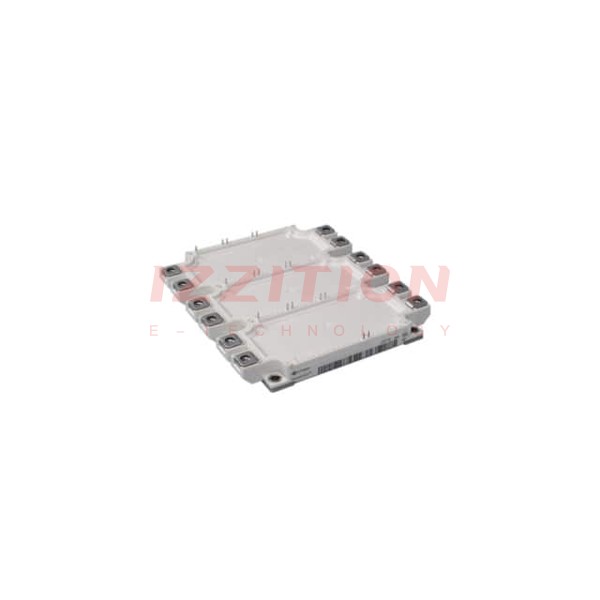

| Part Number | FS225R17KE3BOSA1 | FS225R17KE4BOSA1 | FS225R12KE3BOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Three Phase Inverter | Three Phase Inverter | Full Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V | 1700 V | 1200 V |
| Current - Collector (Ic) (Max) | 340 A | 340 A | 325 A |
| Power - Max | 1400 W | 1500 W | 1150 W |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 225A | 2.3V @ 15V, 225A | 2.15V @15V, 225A |
| Current - Collector Cutoff (Max) | 3 mA | 3 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 20.5 nF @ 25 V | 18.5 nF @ 25 V | 16 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 150°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
