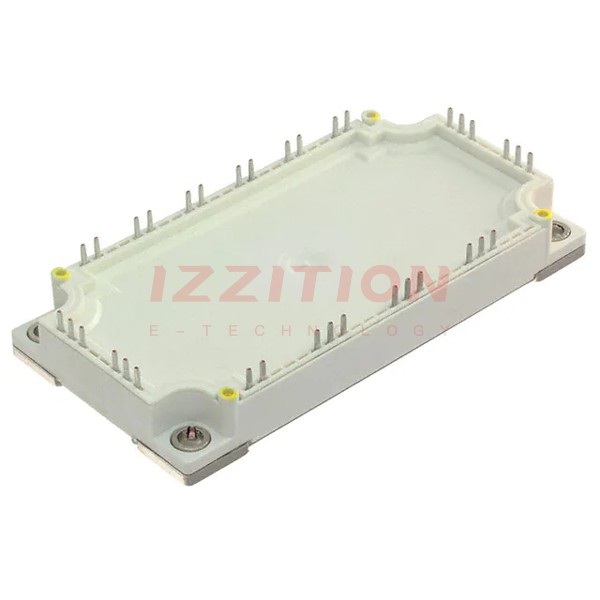

| Part Number | FS200R07A1E3BOMA1 | FS200R07A1E3BOSA1 | FS400R07A1E3BOMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete | Active |
| IGBT Type | Trench Field Stop | - | Trench Field Stop |
| Configuration | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 250 A | 250 A | 500 A |
| Power - Max | 790 W | 790 W | 1250 W |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 200A | 1.9V @ 15V, 200A | 1.9V @ 15V, 400A |
| Current - Collector Cutoff (Max) | 1 mA | 1 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | 13 nF @ 25 V | 13 nF @ 25 V | 26 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | AG-HYBRID1-1 | Module | AG-HYBRID1-1 |
