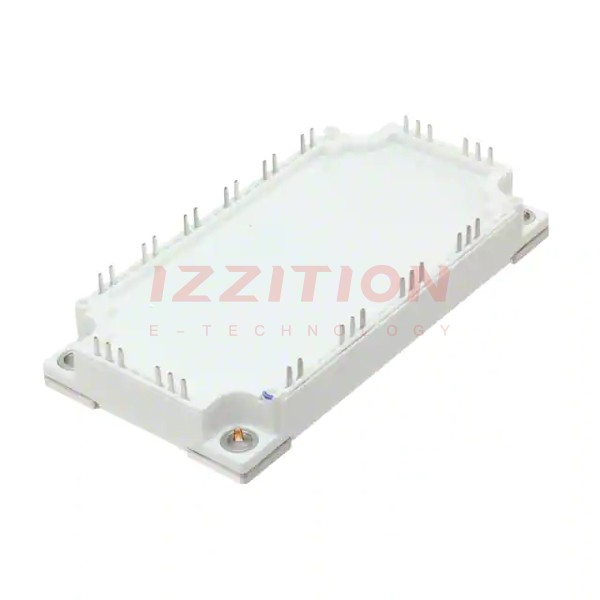

| Part Number | FS150R17N3E4B11BOSA1 | FS100R17N3E4B11BOSA1 | FS150R07N3E4B11BOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V | 1700 V | 650 V |
| Current - Collector (Ic) (Max) | 150 A | 100 A | 150 A |
| Power - Max | 835 W | 600 W | 430 W |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 150A | 2.3V @ 15V, 100A | 1.95V @ 15V, 150A |
| Current - Collector Cutoff (Max) | 1 mA | 1 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | 13.5 nF @ 25 V | 9 nF @ 25 V | 9.3 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
