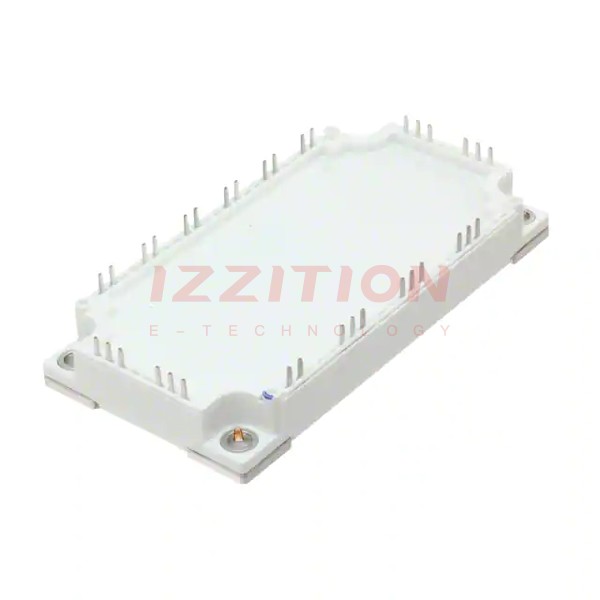

| Part Number | FS150R12KE3GBOSA1 | FS150R17KE3GBOSA1 | FS150R12KE3BOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Not For New Designs | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | NPT |
| Configuration | Three Phase Inverter | Full Bridge | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1700 V | 1200 V |
| Current - Collector (Ic) (Max) | 200 A | 240 A | 200 A |
| Power - Max | 695 W | 1050 W | 700 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 150A | 2.45V @ 15V, 150A | 2.15V @ 15V, 150A |
| Current - Collector Cutoff (Max) | 5 mA | 3 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 10.5 nF @ 25 V | 13.5 nF @ 25 V | 10.5 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
