Infineon Technologies-FS150R07PE4BOSA1 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

Part Number	FS150R07PE4BOSA1	FS150R17PE4BOSA1	FS100R07PE4BOSA1
Manufacturer	Infineon Technologies	Infineon Technologies	Infineon Technologies
Product Status	Active	Active	Active
IGBT Type	Trench Field Stop	Trench Field Stop	Trench Field Stop
Configuration	Three Phase Inverter	Three Phase Inverter	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max)	650 V	1700 V	650 V
Current - Collector (Ic) (Max)	150 A	150 A	100 A
Power - Max	430 W	835 W	335 W
Vce(on) (Max) @ Vge, Ic	1.95V @ 15V, 150A	2.3V @ 15V, 150A	1.95V @ 15V, 100A
Current - Collector Cutoff (Max)	1 mA	1 mA	1 mA
Input Capacitance (Cies) @ Vce	9.3 nF @ 25 V	13.5 nF @ 25 V	6.2 nF @ 25 V
Input	Standard	Standard	Standard
NTC Thermistor	Yes	Yes	Yes
Operating Temperature	-40°C ~ 150°C	-40°C ~ 150°C	-40°C ~ 150°C
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount
Package / Case	Module	Module	Module
Supplier Device Package	Module	Module	Module

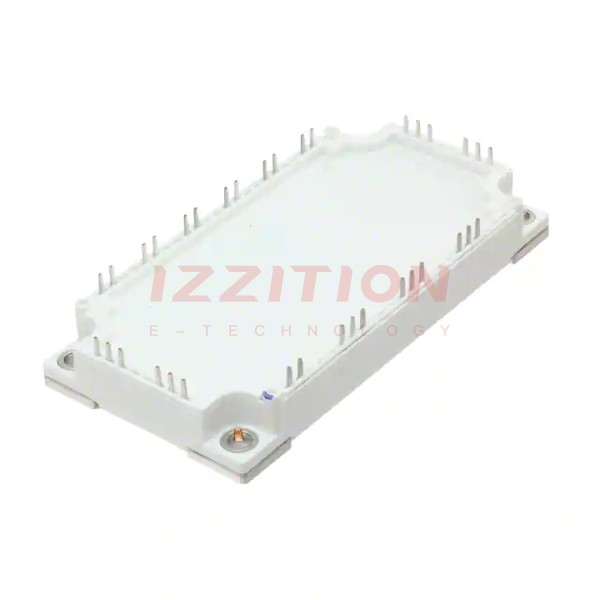

Infineon Technologies FS150R07PE4BOSA1

IGBT Type:	Trench Field Stop
Configuration:	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	150 A
Power - Max:	430 W
Vce(on) (Max) @ Vge, Ic:	1.95V @ 15V, 150A
Current - Collector Cutoff (Max):	1 mA
Input Capacitance (Cies) @ Vce:	9.3 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module
