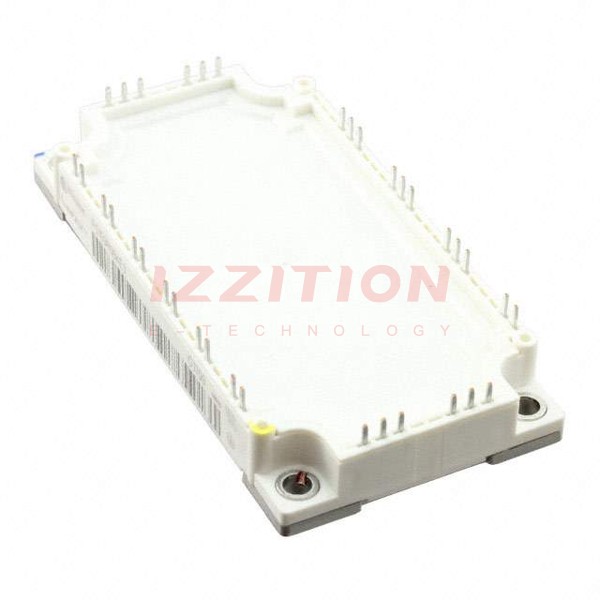

| Part Number | FS150R06KE3BOSA1 | FS100R06KE3BOSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Not For New Designs |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Configuration | Three Phase Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 150 A | 100 A |
| Power - Max | 430 W | 335 W |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 150A | 1.9V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 1 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | 9.3 nF @ 25 V | 6.2 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | No | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
| Supplier Device Package | Module | Module |
