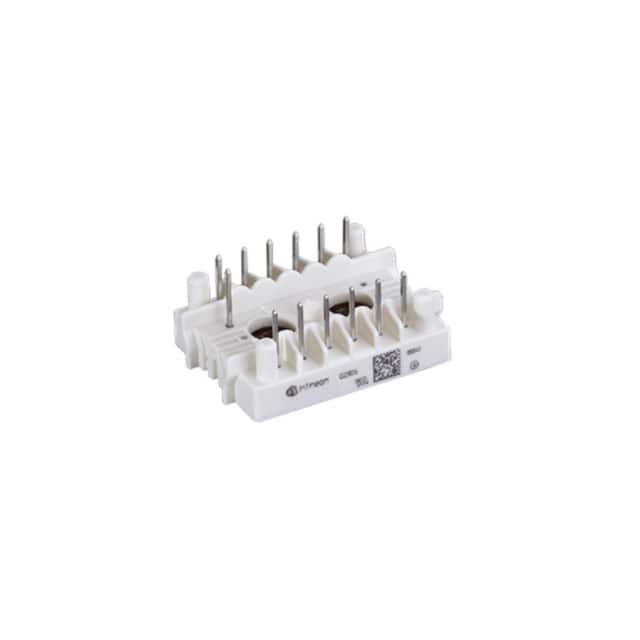

| Part Number | FS10R06VE3B2BOMA1 | FS15R06VE3B2BOMA1 | FS20R06VE3B2BOMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs |
| IGBT Type | - | - | - |
| Configuration | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 16 A | 22 A | 25 A |
| Power - Max | 50 W | 65 W | 71.5 W |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 10A | 2V @ 15V, 15A | 2V @ 15V, 20A |
| Current - Collector Cutoff (Max) | 1 mA | 1 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | 550 pF @ 25 V | 830 pF @ 25 V | 1.14 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
