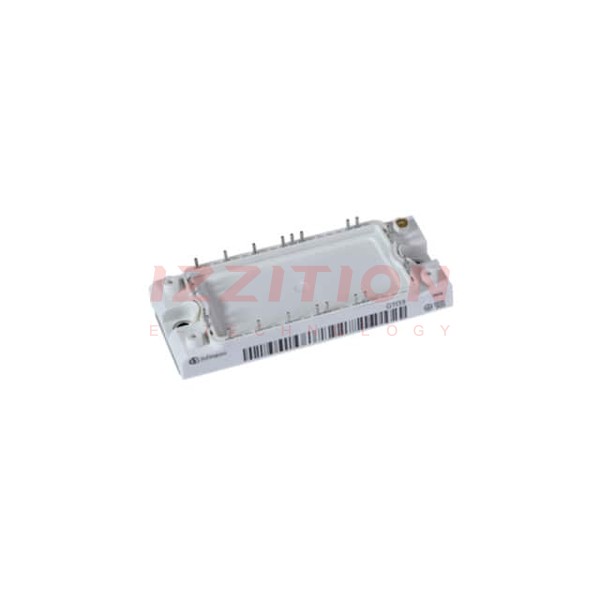

| Part Number | FS100R17KE3BOSA1 | FS300R17KE3BOSA1 | FS100R12KE3BOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs |
| IGBT Type | - | Trench Field Stop | NPT |
| Configuration | Three Phase Inverter | Full Bridge | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V | 1700 V | 1200 V |
| Current - Collector (Ic) (Max) | 145 A | 375 A | 140 A |
| Power - Max | 555 W | 1650 W | 480 W |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 100A | 2.45V @ 15V, 300A | 2.15V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 5 mA | 3 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 9 nF @ 25 V | 27 nF @ 25 V | 7.1 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | No |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
