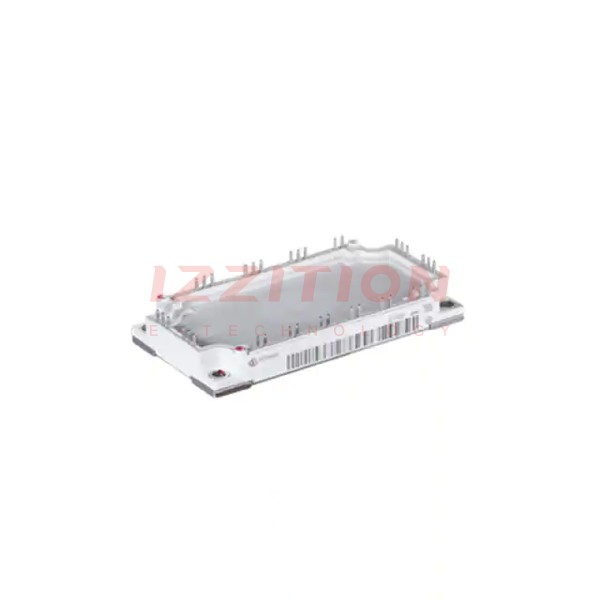

| Part Number | FS100R12KT3BOSA1 | FS150R12KT3BOSA1 | FS100R12KE3BOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Active | Not For New Designs |
| IGBT Type | Trench Field Stop | Trench Field Stop | NPT |
| Configuration | Three Phase Inverter | Three Phase Inverter | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 140 A | 200 A | 140 A |
| Power - Max | 480 W | 700 W | 480 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 100A | 2.15V @ 15V, 150A | 2.15V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 5 mA | 5 mA | 5 mA |
| Input Capacitance (Cies) @ Vce | 7.1 nF @ 25 V | 10.5 nF @ 25 V | 7.1 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | No |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
