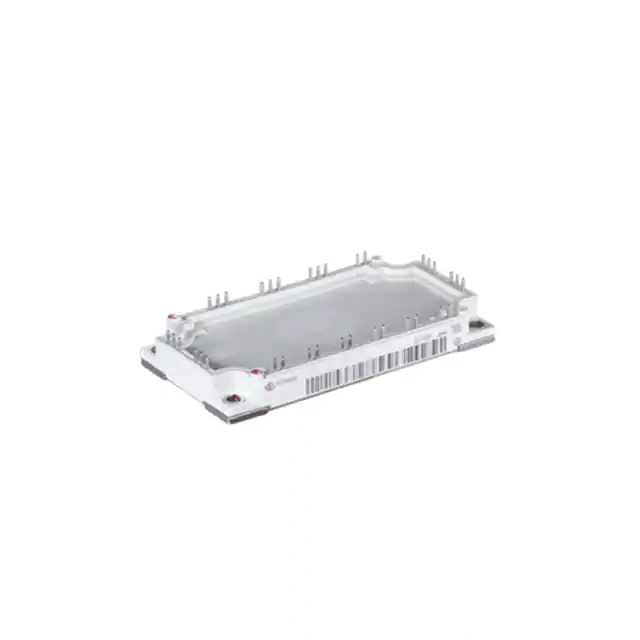

| Part Number | FP50R12KT4GBOSA1 | FP50R12KT4BOSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Discontinued at Digi-Key |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Configuration | Three Phase Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 50 A | 50 A |
| Power - Max | 280 W | 280 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 50A | 2.25V @ 15V, 50A |
| Current - Collector Cutoff (Max) | 1 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | 2.8 nF @ 25 V | 2.8 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
| Supplier Device Package | Module | Module |
