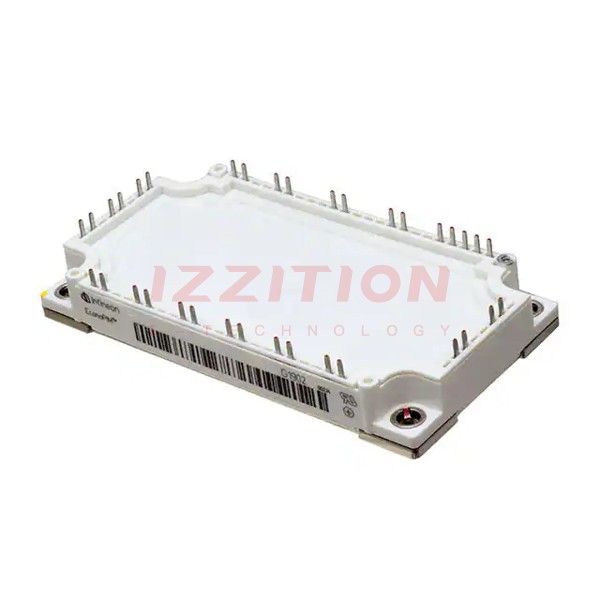

| Part Number | FP40R12KE3GBOSA1 | FP40R12KT3GBOSA1 | FP40R12KE3BOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Discontinued at Digi-Key |
| IGBT Type | Trench Field Stop | - | Trench Field Stop |
| Configuration | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 55 A | 55 A | 55 A |
| Power - Max | 210 W | 210 W | 210 W |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 40A | 2.3V @ 15V, 401A | 2.3V @ 15V, 40A |
| Current - Collector Cutoff (Max) | 1 mA | 5 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | 2.5 nF @ 25 V | 2.5 nF @ 25 V | 2.5 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
