Please send RFQ , we will respond immediately.

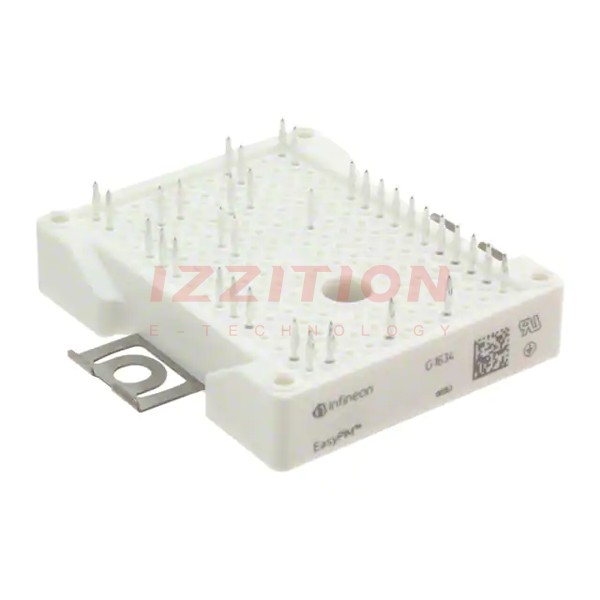

| Part Number | FP35R12W2T4B11BOMA1 | FP35R12W2T7B11BOMA1 | FP25R12W2T4B11BOMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 54 A | 35 A | 39 A |
| Power - Max | 215 W | 20 mW | 175 W |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 35A | 1.6V @ 15V, 35A | 2.25V @ 15V, 25A |
| Current - Collector Cutoff (Max) | 1 mA | 5.8 µA | 1 mA |
| Input Capacitance (Cies) @ Vce | 2 nF @ 25 V | 6.62 nF @ 25 V | 1.45 nF @ 25 V |
| Input | Standard | Three Phase Bridge Rectifier | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 175°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | AG-EASY2B-2 | Module |
