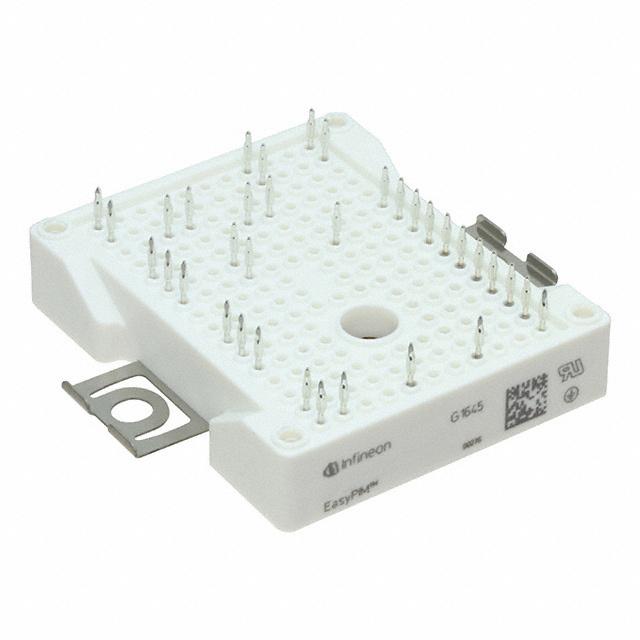

| Part Number | FP25R12W2T7B11BPSA1 | FP25R12W1T7B11BPSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Configuration | Three Phase Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 25 A | 25 A |
| Power - Max | 20 mW | 20 mW |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 15V, 25A | 1.6V @ 15V, 25A (Typ) |
| Current - Collector Cutoff (Max) | 5.6 µA | 5.6 µA |
| Input Capacitance (Cies) @ Vce | 4.77 nF @ 25 V | 4.77 nF @ 25 V |
| Input | Three Phase Bridge Rectifier | Three Phase Bridge Rectifier |
| NTC Thermistor | Yes | Yes |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
| Supplier Device Package | AG-EASY2B-2 | AG-EASY1B-2 |
