Please send RFQ , we will respond immediately.

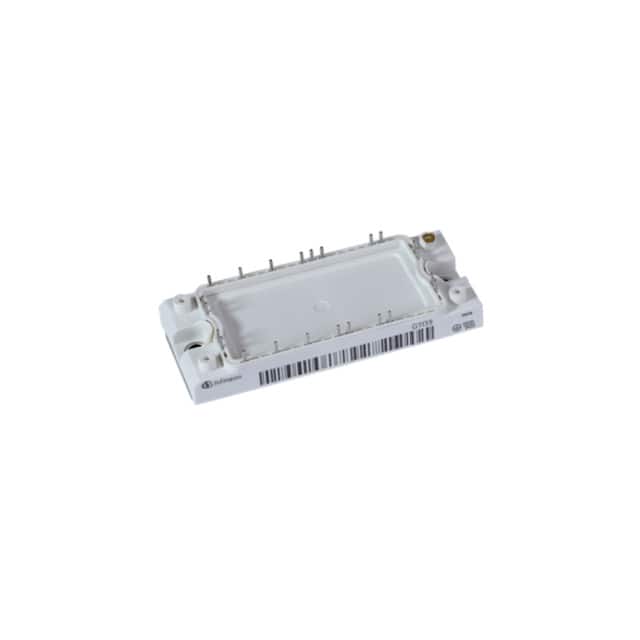

| Part Number | FP25R12KT4B15BOSA1 | FP75R12KT4B15BOSA1 | FP35R12KT4B15BOSA1 | FP25R12KT4B11BOSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Active | Discontinued at Digi-Key | Discontinued at Digi-Key |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Configuration | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 25 A | 75 A | 35 A | 25 A |
| Power - Max | 160 W | 385 W | 210 W | 160 W |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 25A | 2.15V @ 15V, 75A | 2.15V @ 15V, 35A | 2.15V @ 15V, 25A |
| Current - Collector Cutoff (Max) | 1 mA | 1 mA | 1 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | 1.45 nF @ 25 V | 4.3 nF @ 25 V | 2 nF @ 25 V | 1.45 nF @ 25 V |
| Input | Standard | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module |
| Supplier Device Package | Module | Module | Module | Module |
